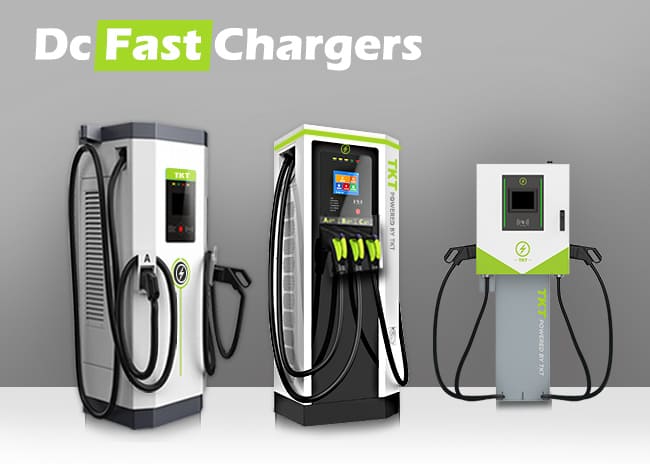

Explore DC Fast EV Chargers Series (Commercial)

Application: Highways, Urban Centers, Commercial Fleets, Public Transportation, Charging Stations, etc.

Output Power: 60KW~200KW ( Level 3 Speed )

Min Voltage Req: 380V ( Input Side )

Connector Standard: CCS1/CCS2/CHAdeMO

Quality Certification: ISO9001, IATF16949, TUV, CE, ect.

Advantages: Dynamic Load Balancing, Modular Design, 100+Patents, IP55, Customization, ect.

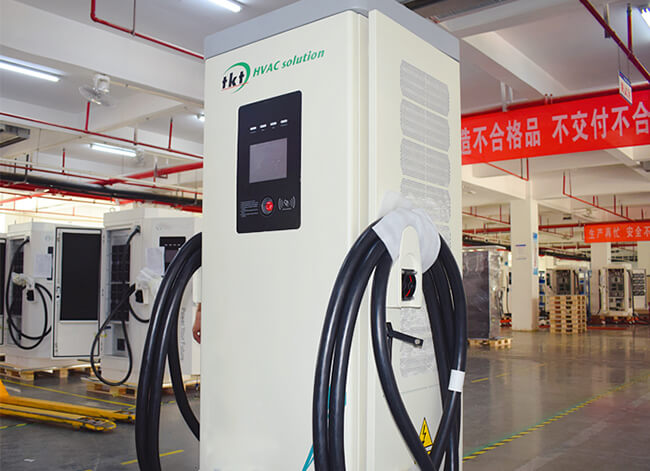

TKT DC Fast Commercial EV Charging Station Overview

We have a wealth of fast charging station solutions for electric vehicles, with charging power ranging from 60kw to 200kw, and the number of plugs is 2, 3, or even more. Support CCS1/CCS2/CHAdeMO Standard. This is enough to meet the needs of different regions, different prices, and different scenarios.

EV Charging StationWe have formed long-term and stable cooperative relations with well-known Chinese enterprises such as Yutong Bus, Zhongtong Bus, BYD Automobile, and Ningde Times. In the international market, we have formed long-term and stable cooperation with Taiwan Yuandian Technology, Turkey Lumhouse, India Tata, India BYD, etc.

Commercial EV Charging Station

Please feel free to leave a message Email:md@tkt-hvac.com and let our experts provide you with expert advice.

Cases of application scenarios for EV charging stations

1. Charging solutions for large fleets
Common types include public transport, transportation and logistics industries. We have undertaken electric bus charging station in the USA, bus charging station in Canada, taxi car charging station in Australia, electric truck charging station in the UK, etc. Our DC charging station solution has increased the frequency of vehicle trips by more than 20%.

Commercial EV Charging Station

Click to view more high-definition cases

2. Charging Solutions for All Commercial Locations
With the popularity of electric vehicles, more and more business premises are in need of Commercial EV Charging Station. For example, Office buildings charging stations, parking lot ev charging stations, ev charging stations for hotels, shopping mall charging station, gas station charger, etc. We have exported to more than 40 countries and regions including Thailand, India, Malaysia, Mexico, Germany, and France.

Commercial EV Charging Station

Click to view more high-definition cases

TKT DC Fast EV Chargers Advantages

1. Multi-Protection – safety above all else

For personal safety: anti-electricity of the shell, plug insulation detection, leakage protection, control module self-test function, power off immediately when the cable falls off, etc.
For vehicle safety: overvoltage protection, undervoltage protection, overcurrent protection, short circuit protection,  Battery anti-reverse connection, BMS independent security protection, etc.
For product safety: High quality military grade components. IP55 protection level, Anti-rain and snow, dust, rust and so on. Real-time detection of security protection, alarm feedback, flame retardant, etc.

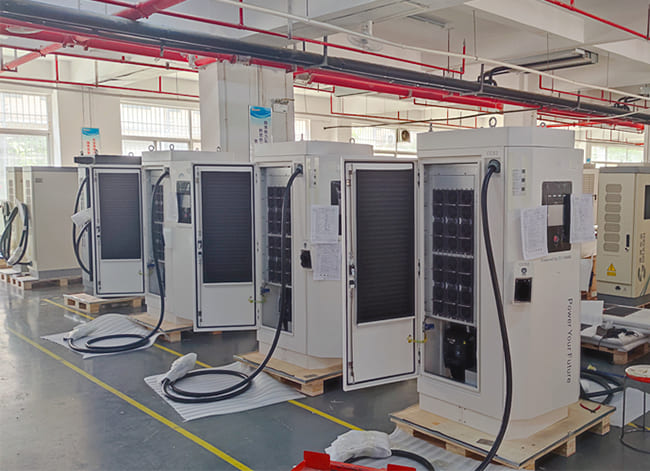

Commercial EV Charging Station production

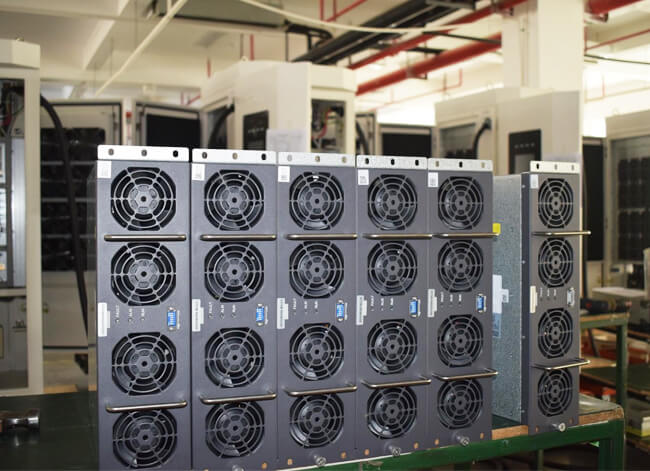

2. Modular Design

Easy to upgrade: With technological progress or changes in charging power requirements, each module of the charging pile can be directly upgraded to meet new changes. Can save costs.
Easy maintenance and repair: Perfect troubleshooting system, quickly find problematic modules, and replace modules independently. This saves maintenance costs and reduces technician requirements.

Commercial EV Charging Station design

3. Fast Charging

The time saved can increase the number of bus and truck trips; it can increase the number of paid charging of EV. Faster charging speeds bring higher profit margins and convenience.
In order to feel the charging speed more intuitively. I made the form. I will use 65kwh as an example. (If you can’t calculate, our experts can help, please contact the experts)

Electric Vehicle Battery Capacity Charging Speed Total Time to Fully Charge Average Miles Gained Per Hour
65kwh Level 1 speed: 3kw 21.67h 10.5mi / 16.8km
Level 2 speed: 7kw 9.29h 24.5mi / 39.2km
Level 2 speed: 11kw 5.91h 38.5mi / 61.6km
Level 2 speed: 22kw 2.95h 77mi / 123.2km
Level 3 speed: 180kw
22min 630mi / 1008km

EV Charging speed

4. Dynamic Load Balancing

Through real-time monitoring, the reasonable distribution and balanced utilization of electric energy among multiple charging piles can be realized to improve charging efficiency, charging pile utilization rate and stability.

EV Charging solution

5. Simple and Practical Management System

User terminal: color LCD touch screen, supports multiple languages, simple design close to the owner’s use. Multiple payment methods are supported.
Management side: intelligent management, remote monitoring, fast and convenient. Various statistics are clear. Easily connects to any OCPP-based backend.

Commercial EV Charging Station system

6. Hundreds of Patents – Support Full Customization

As a leading charging pile manufacturer, it has more than 10 years of technology accumulation, more than 100 patents, supports OEM&ODM, provides white label, customized management system, etc.

EV Charging patents

TKT DC Fast Commercial EV Charging Station Specification Table

Please feel free to leave a message Email:md@tkt-hvac.com and let our experts provide you with expert advice. We support OEM customisation.
Scroll right to view the full content on mobile.

Power (KW) 60 90 120 150 180 200
Input Voltage 3-Phase 380V-600V AC
Working Frequency 45-65Hz
Charging Interface CCS1 / CCS2 / CHAdeMO / GBT
(*2 or *3 optional)
Power Factor ≥0.99
Efficiency ≥94%
Screen Size 8” LCD Touchscreen
(Maximum brightness above 800nit)
Support Language Chinese, English, French, German, Spanish, Russian, etc.
(support customization)
Payment Mobile APP / RFID / POS
Network Connection 4G, Ethernet
Communication Protocols OCPP1.6J or OCPP2.0
Charging Cable Length 5m / 7.5m / 10m optional
Working Temperature -30°C – +50°C
IP Class IP55 (overvoltage protection, undervoltage protection, overcurrent protection, short circuit protection, BMS independent security protection, etc.)
High Specification Materials G60 corrosion-resistant hot-dip galvanized sheet and thickened aluminum-zinc coated sheet
Double-layer anti-corrosion spraying process, in line with QUALICOAT CLASS 1 standard
Three-layer Air Filter stainless steel filter, louver filter, G4 grade dust filter cotton (flame retardant)
Certificate ISO9001, IATF16949, TUV, CE, IEC61851-1,IEC 62196-2
If you need other more detailed technical parameters of the product, please contact us. Leave a message Email:md@tkt-hvac.com
+ Strict Pre-delivery Inspection

We attach great importance to product quality, and we will conduct up to 16 inspections again before each delivery. These include wiring and routing, insulation resistance checks, circuit breaker and emergency stop function checks, internal power supply DC checks, touch screen checks, thermistor checks, fan function checks, charging history checks, remote communication function checks, and more.

+ FAQS | Click for more

Q: Can any electric car use a fast or rapid charger?

A: You don’t need to worry about this since electric automobile manufacturers have built-in safety systems to prevent damage from frequent use of rapid or fast charging. For example, the rate of charge can be automatically lowered if the car thinks too much power is being supplied to the battery too often.

Q: How long does it take to charge an EV with a Level 3 DC fast charger?

A: Also known as DC fast charging, Level 3 charging is the fastest way to charge an EV. It’s able to deliver between 60 kW and 200 kW of power. A Level 3 DC fast charger can charge an electric car to 80 percent in between 15 and 60 minutes.

Q: What is your warranty for EV chargers?

A: Generally 2 years. If you have special requirements please get in touch with our customer service.

Q: Can you print our logo on the products?

A: Yes, we support OEM and ODM service, and there will be a MOQ for custom design.

Q: How long is the lead time?

A: The lead time is 30-45 working days, it depends on the quantity and production schedule.
