30kW-60kW DC Wallbox Charger / Floor Stand EV Charger

This DC Wallbox Charger saves space, is easy to install, and supports simultaneous charging of two vehicles.

Connector Standard: CCS1 / CCS2 / CHAdeMO / GBT

Communication Protocols: OCPP1.6J or OCPP2.0

Quality Certification: ISO9001, IATF16949, TUV, CE, ect.

Application: Highways, Urban Centers, Commercial Fleets, Public Transportation, Charging Stations, etc.


DC Wallbox Charger / Floor Stand EV Charger Overview

TKT DC wallbox charger comes in two forms, Wall-Mounted and Floor-Stand. Has great flexibility. This DC fast charger is especially suitable for fast charging of personal vehicles and small logistics vehicles.
Its charging power is on the small side of DC fast charging stations, so it has been designed to be more compact and have a smaller footprint. This allows more to be installed in the same area, and it can charge two electric vehicles at the same time, greatly increasing charging utilization.

DC Wallbox Charger

TKT DC Fast Charger have a wide range of charging solutions. The products have been exported to more than 40 countries around the world. In particular, it has formed long-term and stable cooperative relationships with well-known companies such as BYD and Tata Motors.

DC Wallbox Charger

DC Wallbox Charger Manufacturers

DC Wallbox Charger Feature

1. With integrated OCPP, the charger can be easily connected to our cloud charging management system for easy operation and maintenance.
2. Support RFID reader for user authentication; 8″ LCD touch screen and user-friendly interface.
3. Support wired / wireless network LAN, 4G.
4. Support OCPP 1.6 and OCPP 2.0 upgrade for online payment and intelligent monitoring.

DC Wallbox Charger

TKT DC Wallbox Charger / Floor Stand EV Charger Advantages

1. Multiple Protection: comprehensive protection for vehicles, people and equipment.
2. Modular Design: Upgrading and maintenance are flexible and simple.
3. Fast Charging: For common electric vehicles, charging time only takes 60 to 90 minutes.
4. Dynamic Load Balancing: improve charging efficiency and charging pile utilization.
5. Advanced Management System: easy for customers to operate. Manager data is clear.
6. Hundreds of Patents: excellent quality, affordable price.

Learn more about the 6 advantages

DC Wallbox Charger

DC Wallbox Charger / Floor Stand EV Charger Specification Table

dc charger connector

DC Charger Connector

Power 30kW-60kW DC Charger 30kW-60kW Floor Stand EV Charger
Input Voltage 3-Phase 400V ±15% AC
Output Connector CCS1, CCS2, CHAdeMO, GBT optional
Working Frequency 45~65Hz
Power Factor ≥0.99
Efficiency ≥94%
Display 8” LCD Touch Screen
Language Chinese, English, Russian, Other languages support customization
Payment Mobile APP/RFID/POS
Network Connection 4G / Ethernet
Communication Protocols OCPP1.6J or OCPP2.0
Working Temperature -30°C  ~ +55°C
Protection IP54
Dimensions (L*W*H) 830*357*800 mm 830*459*1686 mm
Cable Length 5m or 7m
Certificate ISO9001, IATF16949, NTC CE, IEC61851-1, IEC61851-23, IEC61851-21-2, etc.

TKT DC Fast Charger Projects

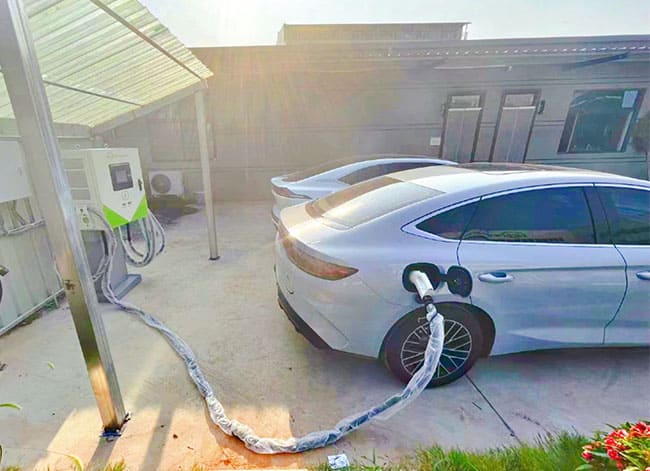

1. Charging solutions for large fleets
Common types include public transport, transportation and logistics industries. We have undertaken electric bus charging station in the USA, bus charging station in Canada, taxi car charging station in Australia, electric truck charging station in the UK, etc. Our DC Fast Charger has increased the frequency of vehicle trips by more than 20%.

DC Fast Charger

Click to view more high-definition cases

2. Charging Solutions for All Commercial Locations
With the popularity of electric vehicles, more and more business premises are in need of DC Fast Charger. For example, Office buildings charging stations, parking lot ev charging stations, ev charging stations for hotels, shopping mall charging station, gas station charger, etc. We have exported to more than 40 countries and regions including Thailand, India, Malaysia, Mexico, Germany, and France.

EV dc charger

Click to view more high-definition cases

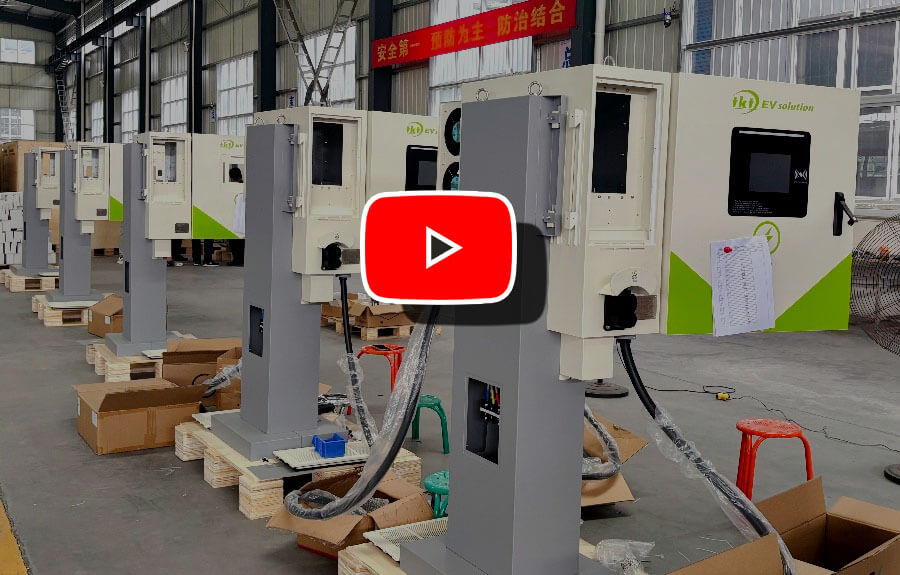

+ Strict Pre-delivery Inspection

We attach great importance to product quality, and we will conduct up to 16 inspections again before each delivery. These include wiring and routing, insulation resistance checks, circuit breaker and emergency stop function checks, internal power supply DC checks, touch screen checks, thermistor checks, fan function checks, charging history checks, remote communication function checks, and more.

+ Basic Knowledge of DC Wallbox Charger

What is DC wallbox?

DC wallbox, also known as DC charging station or DC wall mounted charger, is a charging equipment that is fixedly mounted on a wall or pedestal. It is connected to the AC power grid but outputs DC power so it can quickly charge electric vehicles. Compared with traditional AC charging station, DC wallbox charger can provide higher charging power and faster charging speed.

What is the benefit of DC charger?

1. Fast charging: EV DC charger directly outputs DC power to charge the battery of the electric vehicle, avoiding the conversion process of converting AC power to DC power, thus greatly shortening the charging time.

2. Wide range of application: Due to the faster charging speed of EV DC charger, the waiting time of users is greatly reduced. Therefore it is particularly suitable for fast charging scenarios such as public charging stations and highway service areas. And it is downward compatible with all charger areas.

3. Higher charging efficiency: EV DC charger can intelligently adjust the output voltage and current according to each EV battery and charging strategy through advanced technologies such as dynamic load balancing to achieve optimal charging results.

Is DC Charger better than AC?

DC chargers and AC chargers have their own advantages and disadvantages, which one is better depends on the actual needs and scenarios.
The advantages of DC chargers are fast charging speed, high charging efficiency and high charging power, which are suitable for places that require fast charging, such as public charging stations and highway service areas. In addition, the charging process of DC chargers is more stable and has less impact on the battery. However, its disadvantages are higher cost, larger equipment size, higher complexity of charging equipment, and higher requirements on the power grid.
In contrast, the advantages of AC chargers include more affordable prices, smaller equipment size, and less complex charging equipment. It is suitable for home charging and only can meet daily charging needs.
+ FAQS | Click for more

Q: What is your warranty for EV chargers?

A: Generally 2 years. If you have special requirements please get in touch with our customer service.

Q: Can you print our logo on the products?

A: Yes, we support OEM and ODM service, and there will be a MOQ for custom design.

Q: How long is the lead time?

A: The lead time is 30-45 working days, it depends on the quantity and production schedule.
