This DC fast charging stations is affordable and powerful. It can simultaneously charge 2 EVs at high speed.
Advantages: Dynamic Power Distribution, Modular Design, Intelligent Management Software, ect.
Connector Standard: CCS / CHAdeMO / GBT *2
Communication Protocols: OCPP1.6J
Quality Certification: ISO9001, IATF16949, CE, ect.
Application: Highways, Urban Centers, Commercial Fleets, Public Transportation, Charging Stations, etc.

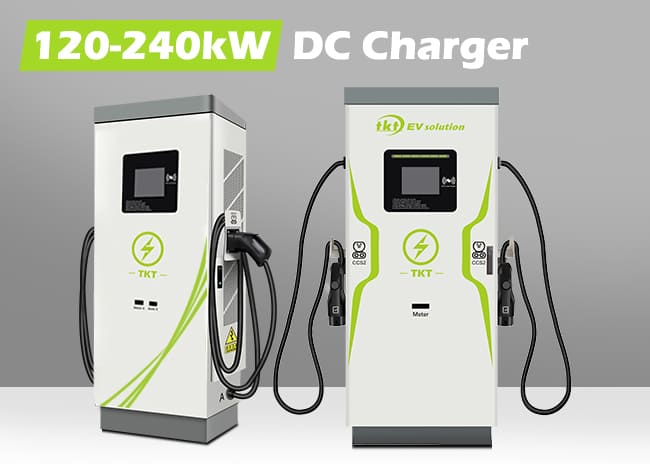

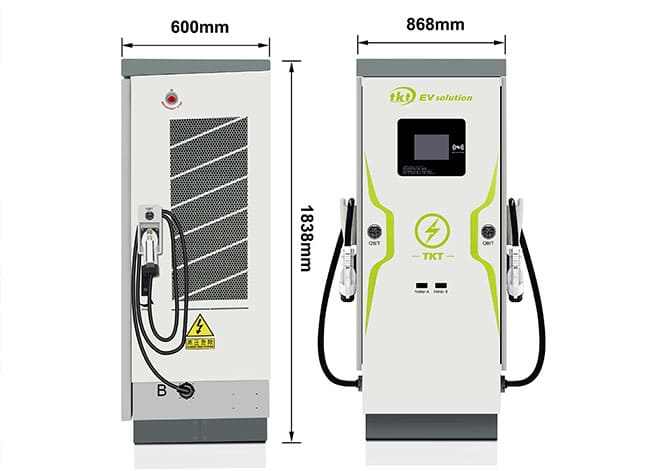

This DC fast charging stations is a popular product from TKT EV Solution. It has two exterior designs. It has two outlets that can charge two electric vehicles at the same time at high speed.

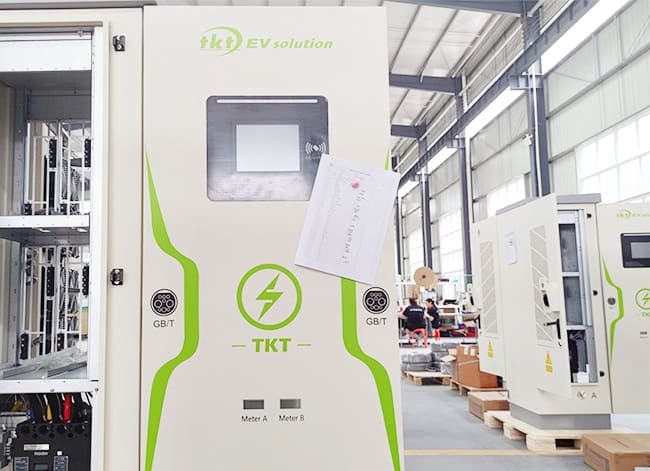

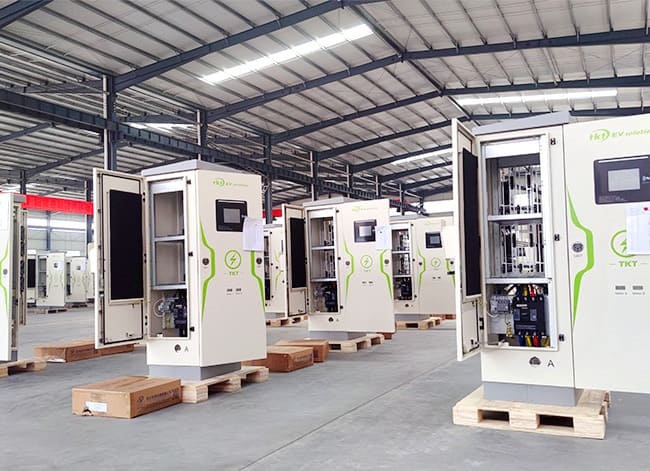

Its charging modules are modular in design. The advantage of this design is that the charging power can be upgraded in the future. Type 1: Each charging module has a power of 30 kW. 4 modules make up 120 kW and 6 modules make up 180 kW. Type 2: 40 kW per charging module, 4 modules of 160 kW and 6 modules of 240 kW.
Let me give you an example to understand the concept of 120kw. Suppose you have a regular passenger car. Its usual 100km electricity consumption is 10 degrees (kwh). For ease of calculation, let’s disregard the conversion rate. A DC 120kw EV charger will charge 120kwh in 1 hour. This is the equivalent of adding 1200 kilometers of range to your electric car. If 2 cars are charging at the same time, the range is halved.
Assuming you are an electric bus, which typically consumes about 100 kWh of electricity per 100 km. A DC 240kw EV charger charges 240kwh in 1 hour, which is equivalent to adding 240km of range to your electric bus.

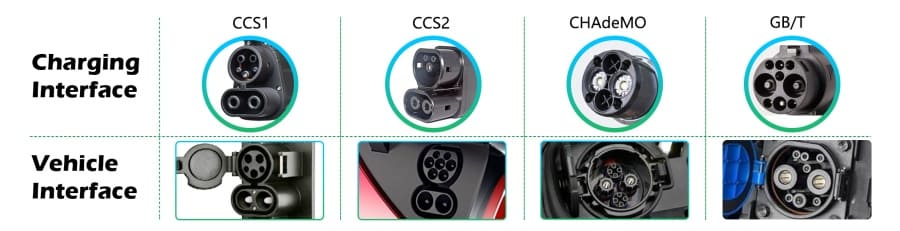

This DC fast charging stations supports customization, such as appearance, logo, and charging ports. There are two optional charging ports that can be selected from CCS, CHAdeMO and GBT. In addition to 120kW – 240 kW, we have a wider range of solutions. (Click to learn more)

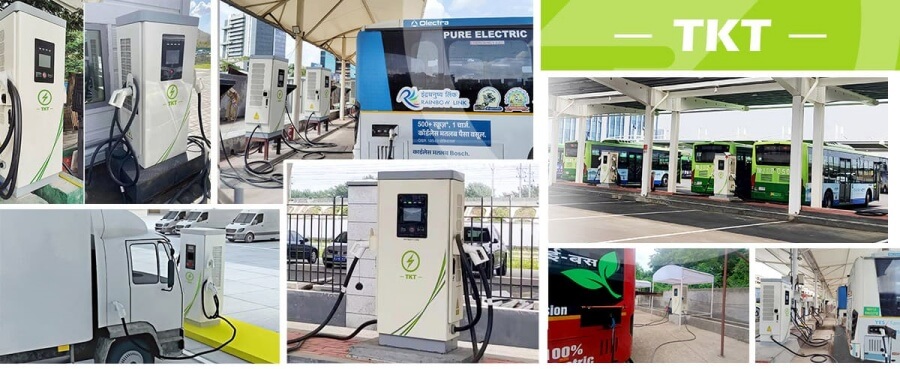

Our DC Fast Charging Stations have been exported to more than 40 countries around the world. In particular, we have formed long-term and stable cooperative relationships with well-known companies such as BYD , TATA Motors.

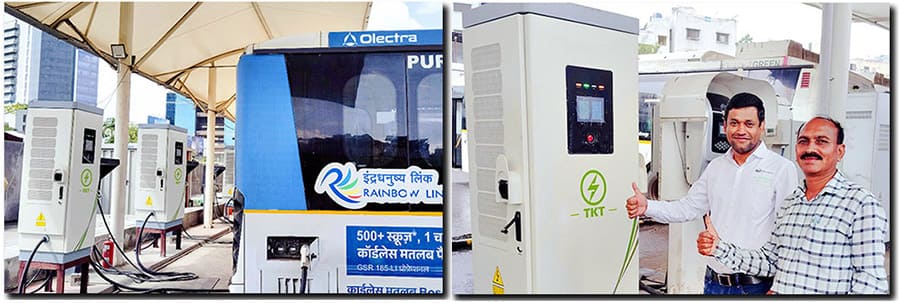

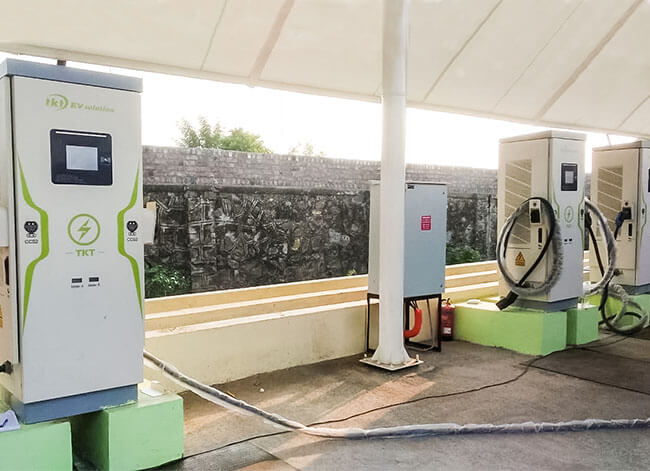

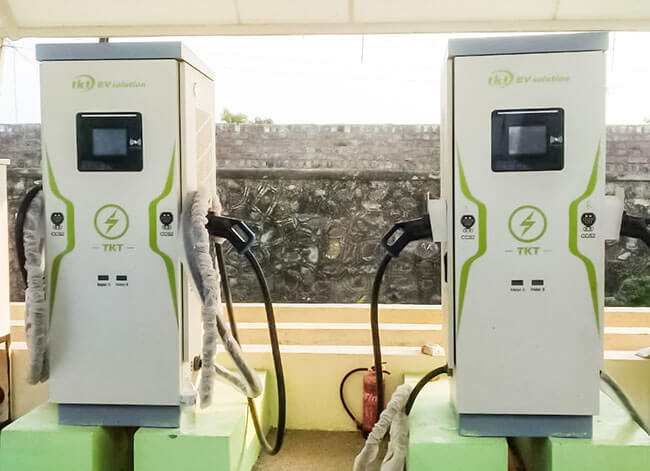

DC Fast Charging Stations Project for BYD Olectra
1. Compatible with OCPP1.6J open charging protocol and the latest DlN70121 communication protocols.
2. The cloud platform service system integrates Ethernet and 4G communication to realize charging, billing, reporting, remote monitoring and other functions.
3. Perfect electrical safety design, with real-time detection of safety protection, equipment abnormality warning, BMS independent safety protection and other functions.
4. IP54 protection level, moisture-proof, shock-proof, dust-proof, flame retardant. With overload protection, short circuit protection, leakage protection and other protection functions.

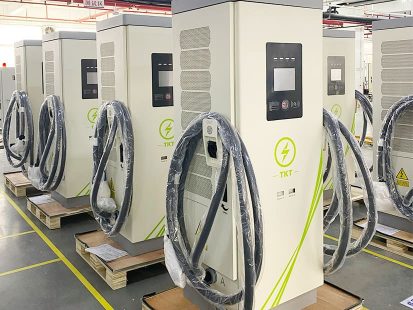

DC Fast Charging Stations Manufacturers
1. Multiple Protection: comprehensive protection for vehicles, people and equipment.
2. Modular Design: Upgrading and maintenance are flexible and simple.
3. Fast Charging: For common electric vehicles, charging time only takes 30 to 60 minutes.
4. Dynamic Load Balancing: improve charging efficiency and charging pile utilization.
5. Advanced Management System: easy for customers to operate. Manager data is clear.
6. Hundreds of Patents: excellent quality, affordable price.
Learn more about the 6 advantages
Please feel free to leave a message and let our experts provide you with expert advice. We support OEM customisation.
| Power | 120kW / 160kW/ 180kW / 240kW Level 3 EV Charger | |||
| Input Voltage | 3-Phase 400V+15% AC | |||
| Working Frequency | 45~65Hz | |||
| Power Factor | ≥0.99 | |||
| Efficiency | ≥94% | |||
| Rated Output Voltage | 1000Vdc | |||
| Rated Output Current | 120A / 180A | |||
| Display | 8” LCD Touchscreen | |||
| Language | Chinese, English, Russian, Other languages support customization | |||
| Payment | Mobile APP/RFID | |||
| Network Connection | 4G / Lan | |||
| Communication Protocols | OCPP1.6J | |||
| Working Temperature | -30°C ~ +50°C | |||
| Storage Temperature | -35°C ~ +55°C | |||
| Protection | IP54 | |||
| Cable Length | 5m / 7.5m | |||
| Certificate | ISO9001, IATF16949, NTC CE, IEC61851-1, IEC61851-23, IEC61851-21-2, etc. | |||

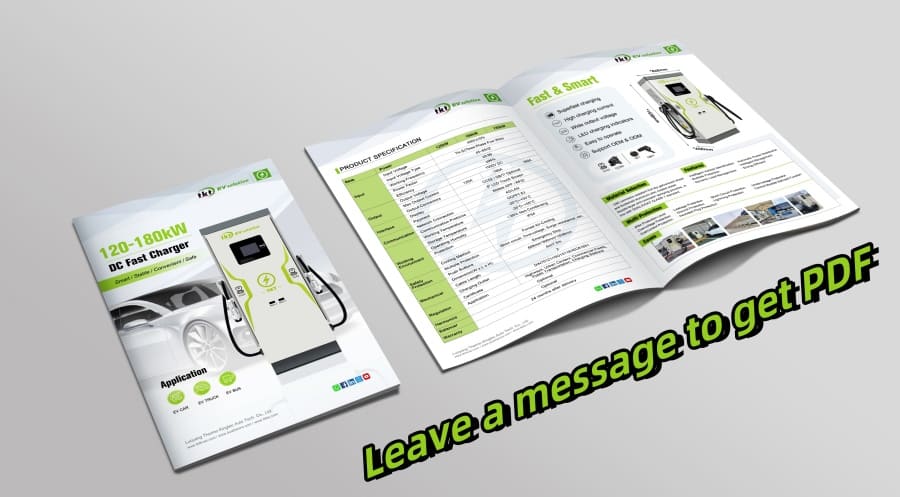

| If you need other more detailed technical parameters of the product, please feel free to leave a message. | ||||

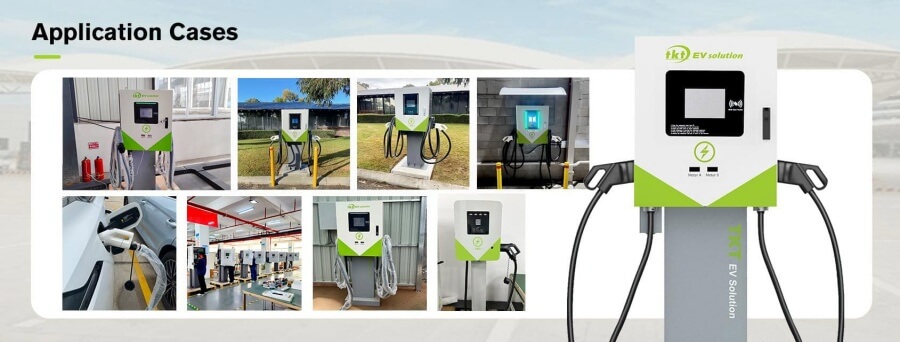

1. Charging solutions for large fleets

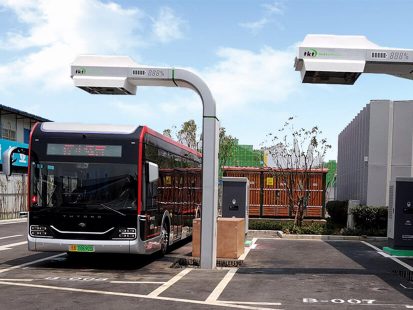

Common types include public transport, transportation and logistics industries. We have undertaken electric bus charging station in the USA, bus charging station in Canada, taxi car charging station in Australia, electric truck charging station in the UK, etc. Our DC fast charging stations has increased the frequency of vehicle trips by more than 20%.
Click to view more high-definition cases
2. Charging Solutions for All Commercial Locations
With the popularity of electric vehicles, more and more business premises are in need of DC fast charging stations. For example, Office buildings charging stations, parking lot ev charging stations, ev charging stations for hotels, shopping mall charging station, gas station charger, etc. We have exported to more than 40 countries and regions including Thailand, India, Malaysia, Mexico, Germany, and France.
Click to view more high-definition cases

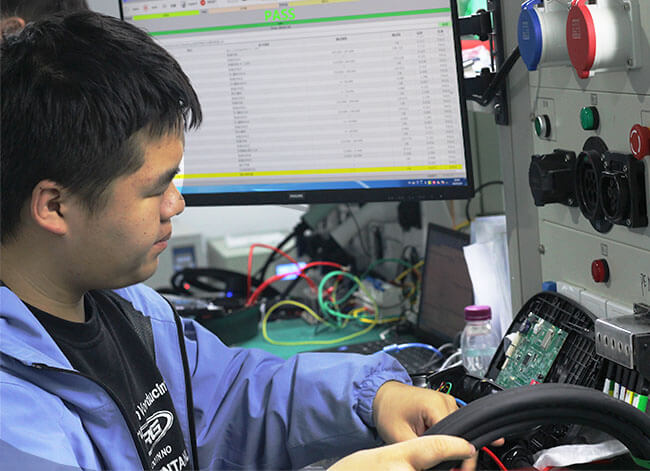

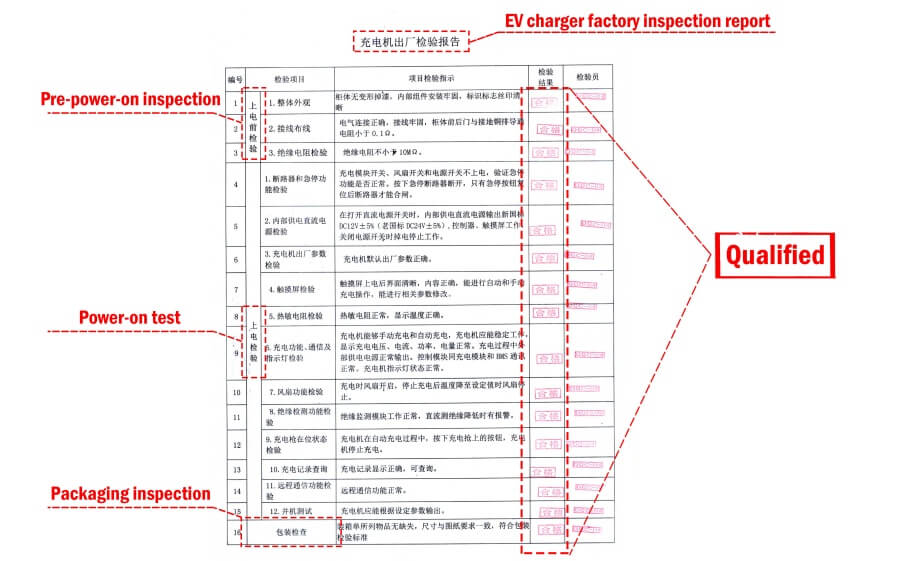

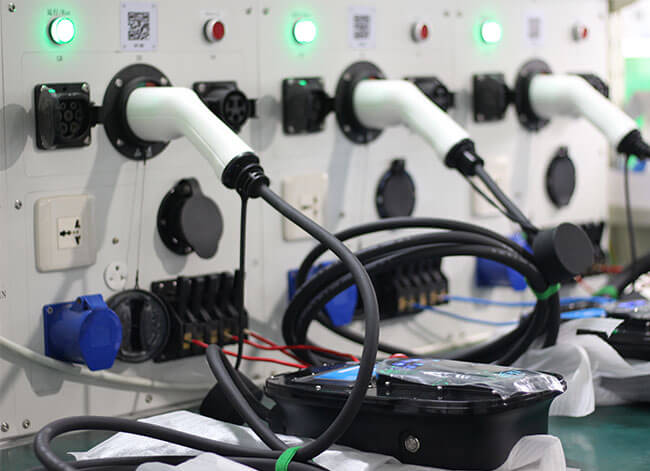

We attach great importance to product quality, and we will conduct up to 16 inspections again before each delivery. These include wiring and routing, insulation resistance checks, circuit breaker and emergency stop function checks, internal power supply DC checks, touch screen checks, thermistor checks, fan function checks, charging history checks, remote communication function checks, and more.
DC Fast Charging Station, is a fixed installation, connected to the AC power grid power supply device. The DC fast charging stations adopts three-phase power supply, its input voltage is AC380V±15%, frequency is 45-65Hz, and its output is direct current, which can directly charge the power battery of electric vehicles. DC fast charging stations output voltage and current adjustment range is large, can provide ultra-high power, so it can meet the needs of rapid charging.
In practical application, DC fast charging stations have become one of the important facilities for electric vehicle charging. They not only have the advantages of fast charging and high efficiency, but also can realize remote monitoring and control through intelligent features to facilitate the charging process of electric vehicles.
DC fast charging stations work by converting alternating current (AC) to direct current (DC) and providing fast charging for electric vehicles through high-powered charging equipment.
The DC fast charging station converts incoming AC power to DC power through its internal rectifier and inverter, and adjusts the voltage and current levels according to the needs of the electric vehicle. It delivers the DC power directly to the power battery of the electric vehicle, thus realizing fast charging of the battery.
Since the DC fast charging station outputs a wide range of current and voltage, it can fully charge an electric vehicle in a shorter period of time. Generally speaking, charging with a DC fast charging station can fully charge an electric vehicle between 20 minutes and 2 hours, depending on the battery capacity of the electric vehicle and the power level of the charging station.
The main difference between DC fast charging station and AC fast charging station is reflected in charging speed, equipment cost and usage scenarios.
A. Charging speed: DC fast charging station uses DC power supply to charge electric vehicles, due to the characteristics of DC power, it can provide a large amount of electricity for electric vehicles in a short time, so the charging speed is faster. On the other hand, the AC fast charging station uses AC power source, which needs to be converted into DC power for charging by the vehicle charger, so the charging speed is relatively slow.
B. Equipment cost: DC fast charging station needs to have higher voltage and current output capacity, so it needs to use more complex circuit and equipment, the cost is relatively high. On the other hand, AC fast charging stations are relatively simple and low cost.
C. Scenarios: DC fast charging stations are usually applied to large charging stations, highway service areas and other places that need to provide fast charging services for electric vehicles. On the other hand, AC fast charging stations are more suitable for small charging scenarios, such as homes and offices, to provide slow charging services for electric vehicles.
A: You don’t need to worry about this since electric automobile manufacturers have built-in safety systems to prevent damage from frequent use of rapid or fast charging. For example, the rate of charge can be automatically lowered if the car thinks too much power is being supplied to the battery too often.
TKT EV Solution was founded in 1998. So far, it has obtained many quality certificates such as ISO9001:2015, IATF16969:2016, CE, EMI/EMC, etc. And owns more than 100 related patents.
