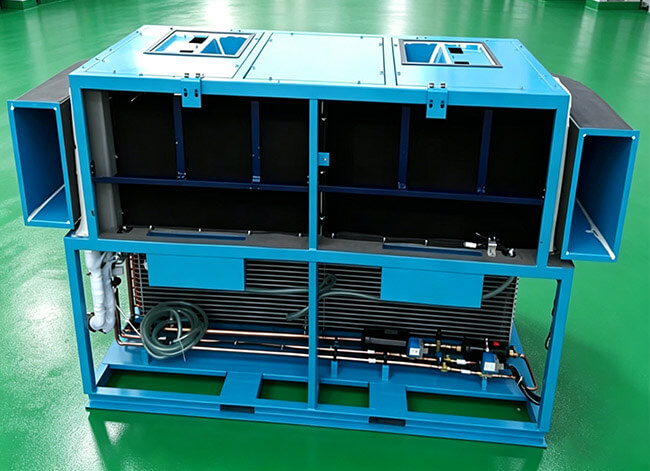

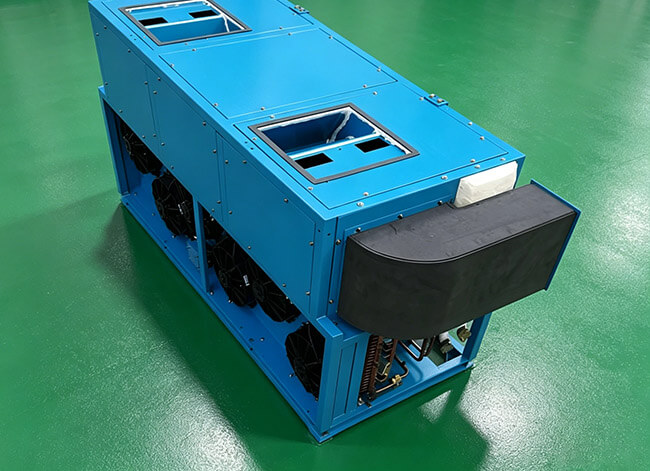

Double Decker Bus Rear Air Conditioner

Cooling Capacity: 55 KW/187K BTU

Heating is Optional

Voltage: DC450 V-780 V

OEM/ODM/Customized Available

Product Model: Electric-550ED

Wonderful Cases: Below the list

Share

30years

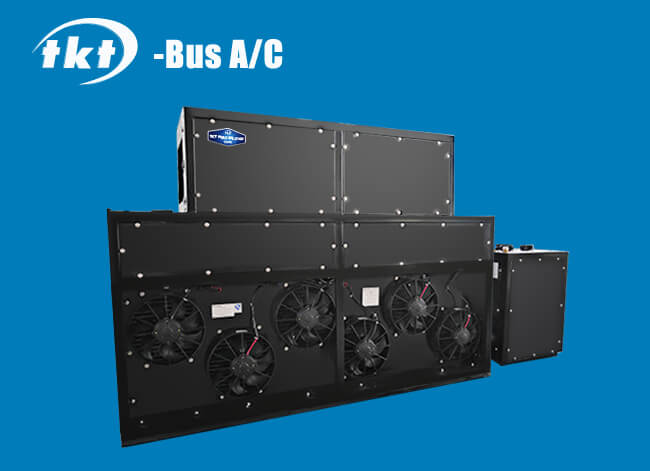

Double Decker Electric Bus Air Conditioner Overview

TKT-550ED is designed for double-decker buses and powered by the battery pack of electric buses.
As an expert and leading manufacturer of Electric bus A/C in China, TKT Busthermo has been supplied to YUTONG, Golden Dragon, Yaxing, Ankai, Neoplan, Hengtong, Shenlong, Foton and Nanjing Golden Dragon ect main bus manufacturer in China, and also do OEM to TATA Motor, TATA Marcopolo, Daewoo, Isuzu, MAZ, INCARVEN, MODABUS, GET ect bus manufacturer in the world. Those rich experience and over 20 years of market verification prove that TKT air conditioner is trustworthy. Currently we mainly provide rooftop all electric bus ac E-series for 6-12meters bus, suit for DC250V-DC750V bus input.

Exclusive Advantages:

1. Designed 6 Condenser Fan to Guarantee the Fast Cooling even Ambient Temperature is more than 45 Deg. C
2. Adopting R410A Refrigerant to Achieve Super Cooling
3. Exclusive Design of Condenser Coil Structure with Design Patent to Get More Heat Release Area but Using Less Material
4. Running in China for 5 Year with ZERO Failure Rate
PS: OEM project for other length EV bus is available!

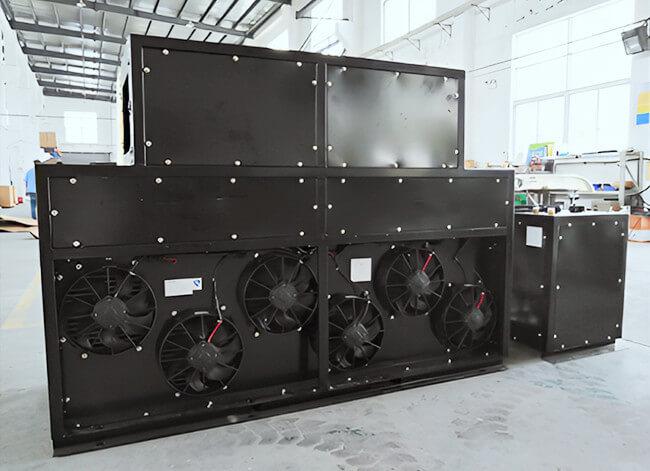

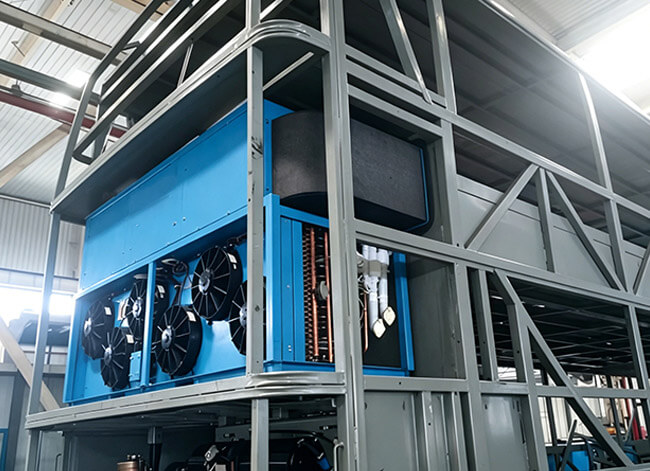

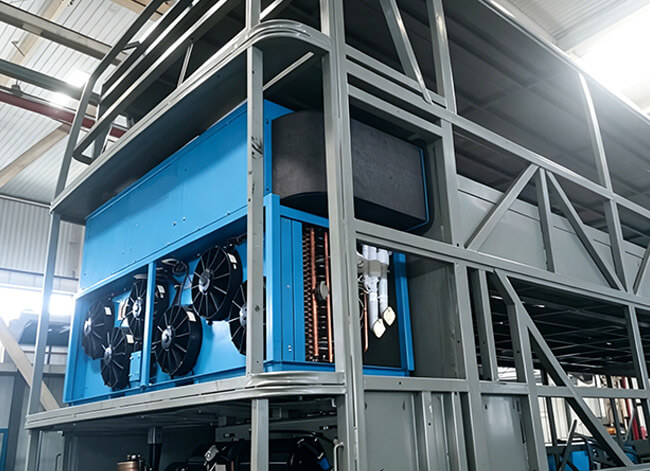

Double Deck Electric Bus A/C

Double Deck Electric Bus A/C

550ED Specification Table

Cooling Capacity 55 kW (187K BTU)
Heating is Optional
Compressor Japan SANYO 80.5 cc/r
Refrigerant R410 A/7 KG(On-site Filling)
Condenser QTY/Air Flow 6 PCs/14400 m³/h
Evaporator QTY/Air Flow (6 PCs+3 PCs)6000 m³/h+3000 m³/h
Power Supply/Rated Power High-voltage Power Supply:DC450 V-780 V
Control Power Supply:DC24 V/10 A

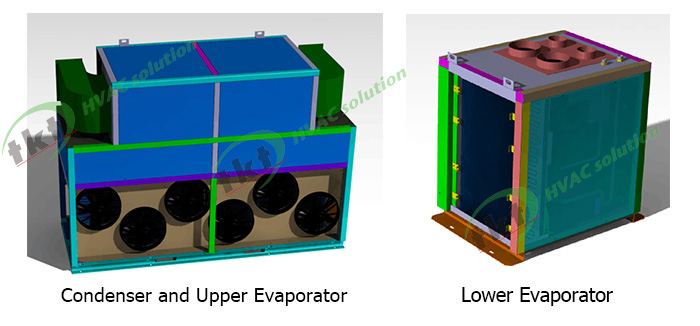

Dimenssion Condenser and Upper Evaporator:2000*750*1405 mm
Lower Evaporator :800*600*833 mm
Weight Condenser and Upper Evaporator:320 KG
Lower Evaporator:36 KG
Product Standard GB/T21361-2008(A/C for Automotive)
&TB/T1804 2003(A/C for Railway Coach)
Safety Reference Standard CJ/T 5007 Technical requirements for trolleybuses
CJ/T 5008 Test methods for trolleybuses
GBT 18384.3-2015 Safety Requirements
for Electric Vehicles
Personnel Protection against Electric Shock

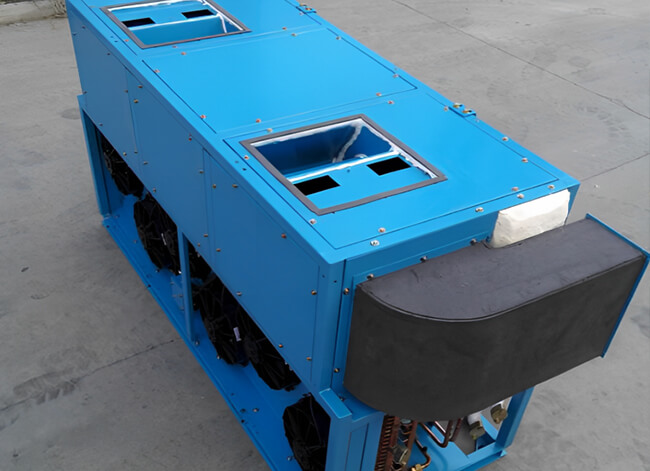

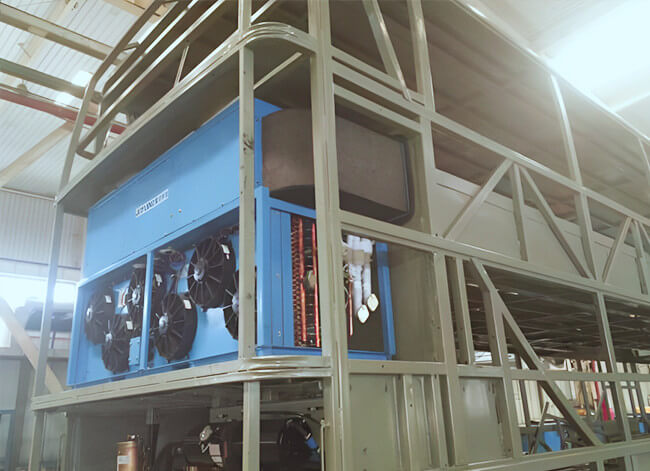

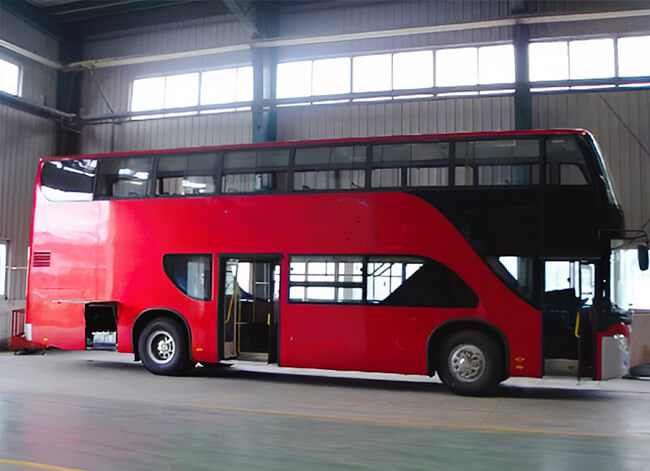

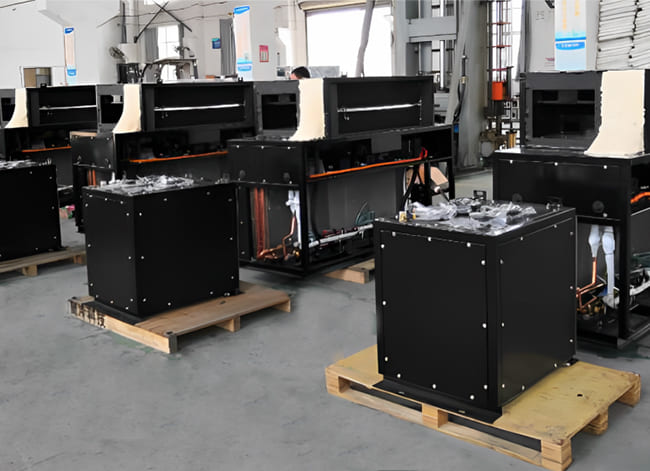

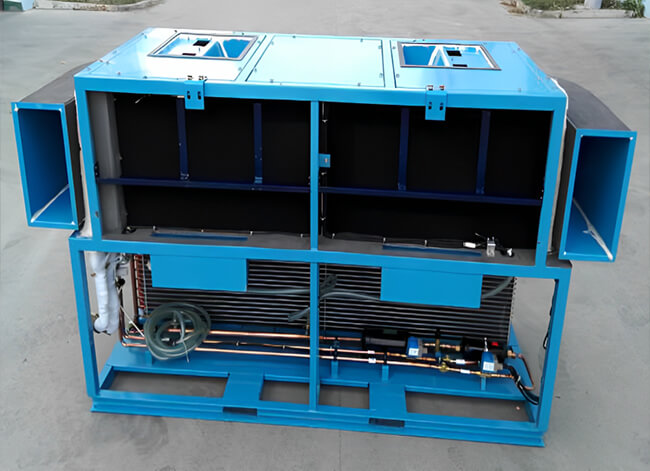

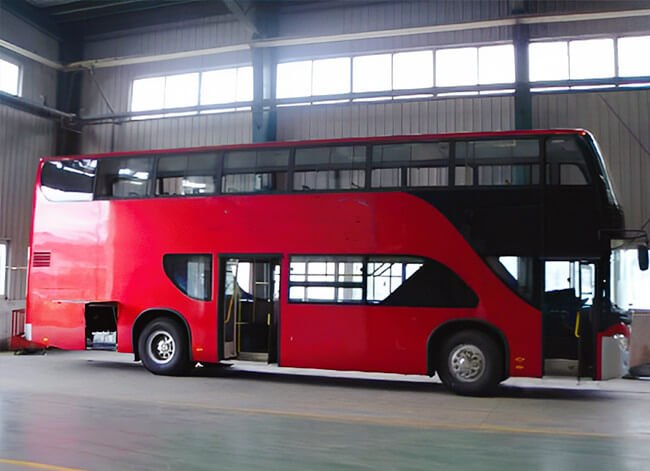

More Electric Bus Air Conditioner Cases

PS: OEM project for other length EV bus is available!

Bus Air conditioner

Click for More Cases (Load HD Pictures, Wait Patiently)

Strict & Perfect Inspection

1, EMC Electromagnetic Test: also called electromagnetic compatibility (EMC), refers to the electronic products in the electromagnetic field interference size (EMI) and anti-interference ability (EMS) comprehensive assessment, is one of the most important indicators of product quality.
2, Pipe Airtightness Testing: we will always carry out up to 12 hours of testing, in order to ensure that the air conditioning system pipeline all normal, no refrigerant leakage point.
3, Core Airtightness Testing: the core is checked again before the installation of the bus air conditioner to ensure that there are no leak points. To ensure that customers receive the perfect product.
4, Drenching Test: The products were subjected to a strict drenching test to ensure that they could withstand all kinds of bad weather.
5, Vibration Test: The products were tested to simulate severe bumpy road conditions. Our products can withstand the extreme bumpy road conditions in India. 5 years later, they are still running stably.
6, Finished Product Testing: experienced quality inspectors will complete as many as dozens of qualified tests before the bus air conditioner is officially shipped.

bus ac test

Welcome to be Our Customers / Partners / Dealers:

You will get the following benefits.
1. Longer lifespan: more than 30% longer than low-end air conditioners
2. More stable operation: 45 degree outdoor temperature still stable operation
3. Factory sourced pricing
4. Customized OEM service
5. (Click to learn more benefits)

partner

Click to see more customer visit

+ Video of Debugging

Bus air conditioning commissioning

Click to Play

+ About TKT HVAC

About TKT HVAC

The leading commercial vehicle air conditioner manufacturer in China! TKT has a team of 135 engineers including design engineers, structural engineers, electrical engineers, test engineers, EMI/EMC engineers, and after-sales engineers, and has complete design, development, and testing capabilities for vehicle air conditioners and parts. With more than 210 patents and CE, EMI/EMC certification of main products.

TKT Diesel Bus HVAC Systems

Learn More About TKT and Certifications

+ FAQS | Click for more

Payment Terms

For small order:
1)100% T/T in advance is acceptable
2)receive payment from Alibaba Trade assurance system
For big value order:
50% T/T deposit, 50% balance before shipping

Warranty Policy

1) 18 Months Free Warranty Time;
2) Free Spare Parts Delivered in Advance;
3) Local Free Service during Warranty Period;
Specific products and accessories may be longer, please leave a message for detailed consultation.
