Cooling Capacity: 12 KW/40K BTU
Heating is Optional
Compressor: DY7H15/SANDEN15
Dimension: 1010*974*194 mm
Product Model: 120V
Wonderful cases: Below the list

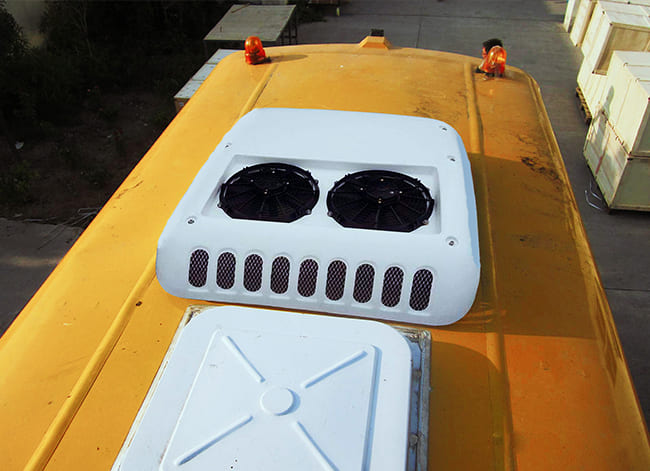

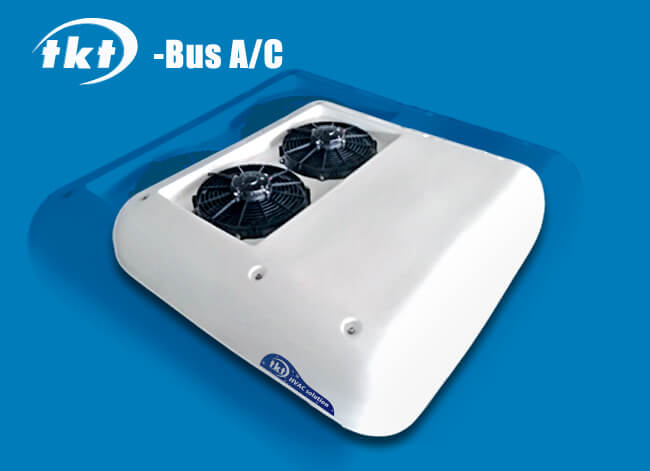

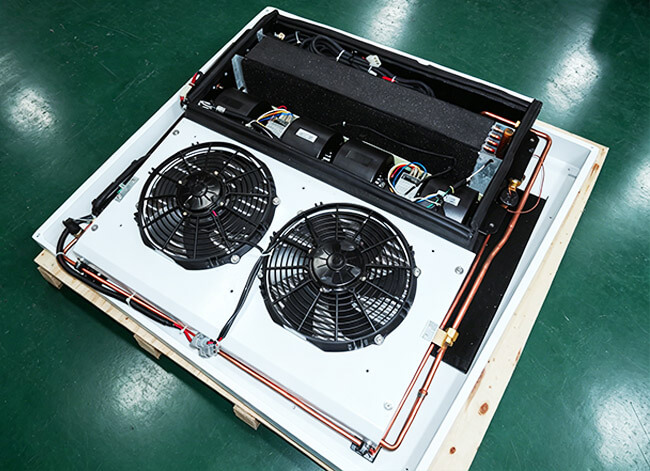

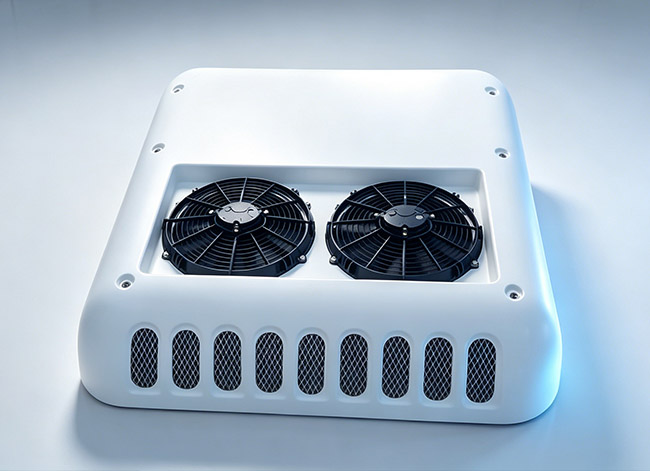

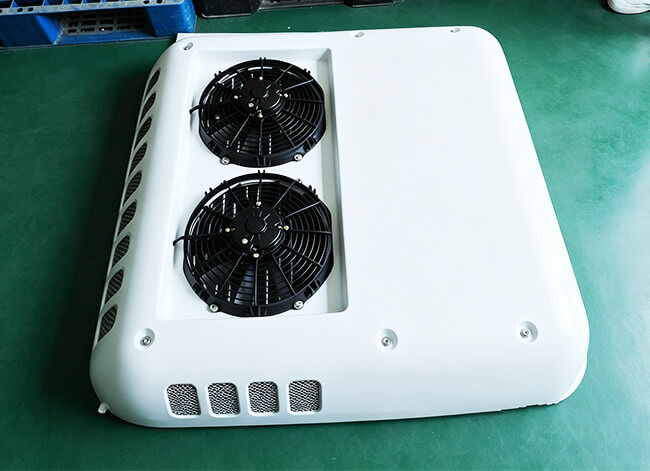

The TKT-120V is an engine-driven van air conditioning for models with less than 18 seats.
As an expert and leading manufacturer of bus A/C in China, TKT has been supplied to YUTONG, Golden Dragon, Yaxing, Ankai, Neoplan, Hengtong, Shenlong, Foton and Nanjing Golden Dragon ect main bus manufacturer in China, and also do OEM to TATA Motor, TATA Marcopolo, Daewoo, Isuzu, MAZ, INCARVEN, MODABUS, GET ect bus manufacturer in the world. Those rich experience and over 20 years of market verification prove that TKT air conditioner is trustworthy.
1. Patent System Design to Guarantee Super Cooling for Tropical Climate;
2. Inner Screw Copper Tube & Hydrophilic Alu. To Guarantee 12-18 Years Life Time;
3. Adopting World Top Brand Components to Lower Life Cycle Cost;
4. Easy Installation, Operation & Service;
5. Fresh Air Available;
6. OEM/Customized System/More Requirement Acceptable;
Learn More About Advantages in Detail
Model No | TKT-120V | |
Cooling Capacity | 12 KW/40920 BTU Heating is Optional |
|
Compfessor | DY7H15/SANDEN7H15 | |
Driven Mode | Engine Direct Driven | |

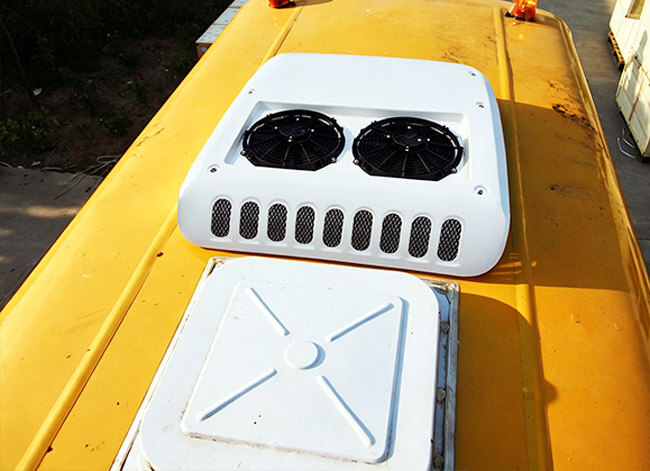

Installation | Roof Top | |
Refirgeration | R134A | |
Voltage/Currents | X12 V(34 A)/DC24 V(17 A) | |
Condenser | Air Flow | 2900 m³/h |
Fan | 2 PCs | |
Evaporator | Air Flow | 2200 m³/h |
Blower | 2 PCs | |

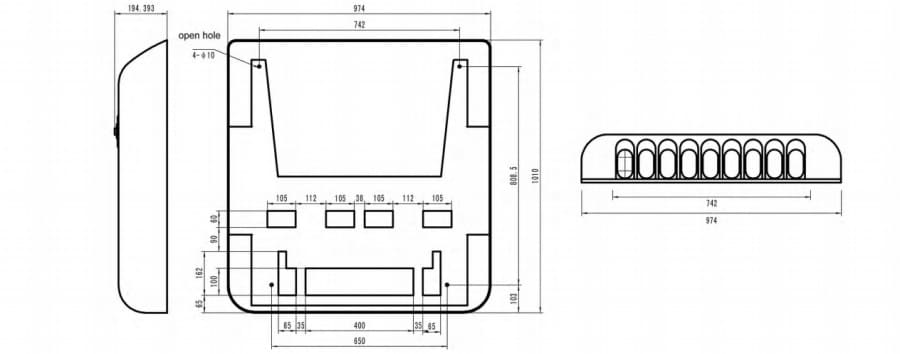

Dimension | 1010*974*194 mm | |
Weight | 56 KG | |
Application for Vehicle | Passenger Less than 18 |
PS: OEM project for other length van is available!
Click for More Cases (Load HD Pictures, Wait Patiently)
1, EMC Electromagnetic Test: also called electromagnetic compatibility (EMC), refers to the electronic products in the electromagnetic field interference size (EMI) and anti-interference ability (EMS) comprehensive assessment, is one of the most important indicators of product quality.
2, Pipe Airtightness Testing: we will always carry out up to 12 hours of testing, in order to ensure that the air conditioning system pipeline all normal, no refrigerant leakage point.
3, Core Airtightness Testing: the core is checked again before the installation of the bus air conditioner to ensure that there are no leak points. To ensure that customers receive the perfect product.
4, Drenching Test: The products were subjected to a strict drenching test to ensure that they could withstand all kinds of bad weather.
5, Vibration Test: The products were tested to simulate severe bumpy road conditions. Our products can withstand the extreme bumpy road conditions in India. 5 years later, they are still running stably.
6, Finished Product Testing: experienced quality inspectors will complete as many as dozens of qualified tests before the bus air conditioner is officially shipped.
You will get the following benefits.
1. Longer lifespan: more than 30% longer than low-end air conditioners
2. More stable operation: 45 degree outdoor temperature still stable operation
3. Factory sourced pricing
4. Customized OEM service
5. (Click to learn more)
The leading commercial vehicle air conditioner manufacturer in China! With 25 engineers with master and PhD degrees, 480 workers with 4-8 years of assembly experience, and 85 countries to provide you with perfect after-sales service. Over 210 patents and CE, EMI/EMC certifications for major products.
Payment Terms
For small order:
1)100% T/T in advance is acceptable
2)receive payment from Alibaba Trade assurance system
For big value order:
50% T/T deposit, 50% balance before shipping
Warranty Policy
1) 18 Months Free Warranty Time;
2) Free Spare Parts Delivered in Advance;
3) Local Free Service during Warranty Period;
Specific products and accessories may be longer, please leave a message for detailed consultation.
