TKT provides custom battery chiller services for all electric heavy-duty equipment. Voltage range is DC 220~450V / 400~750V / 500~900V.
1. Fast OEM/ Customized Design (1 month)
2. 精確的溫度控制 (0.5 你C)
3. CAN Control to avoid the wrong operation to damage battery pack

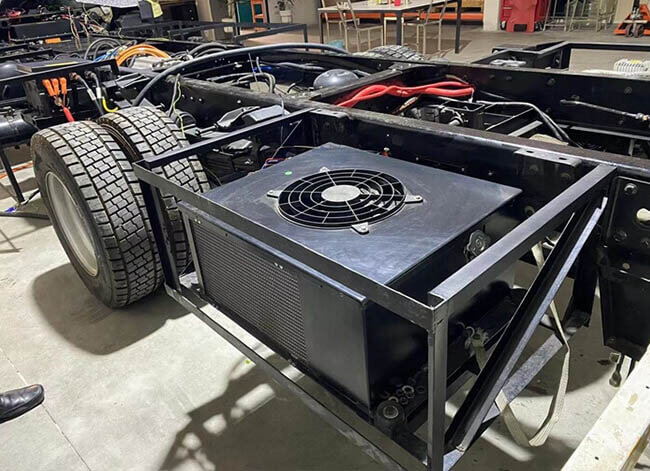

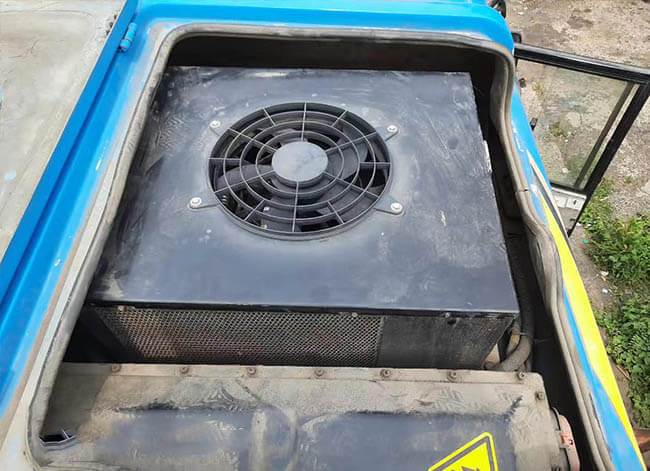

過去的事 10 年, TKT根據不同OEM客戶的要求設計和製造電池組冷卻系統, 比如比亞迪, 宇通和金龍在中國, 和印度塔塔汽車公司, 大宇在韓國及其他海外市場. 電池熱管理系統的冷卻能力與加熱能力(BTMS) ranges from 3-10kW according to customer’s requirements, 即使環境溫度達到 60 攝氏度或 -20 攝氏度. TKT 也生產屋頂安裝式電池冷凍機, 根據不同客戶的要求可分為側掛式電池冷水機和底盤式電池冷水機.
“EV Battery Thermal Management Case Study – A Customized Story for Fortune 500” 點擊閱讀 (highly recommended)
🔹 Over 10 多年的市場驗證
隨著超過 200,000 units in operation globally, its quality and performance are renowned worldwide.
🔹 Patented design
Lighter weight, superior cooling/heating performance.
🔹 Larger coolant flow rate
Maintains battery temperature in the shortest time.
🔹 CAN control
Prevents damage to the battery pack due to misoperation.
🔹 Electrical components with IP67 protection rating
Essentially, such as electric compressors, 水泵浦, and connectors.
🔹 Rapid OEM/custom design (1 month)
🔹 Precise temperature control (0.5℃).
TKT HVAC 成立於 1998, 和 25 engineers with master and PhD degrees, 480 工人與 4-8 多年組裝經驗, 和 85 國家為您提供完善的售後服務. 多於 210 專利和CE, 主要產品EMI/EMC認證.
The operation of the battery is accompanied by the process of charging and discharging, which will generate a lot of heat. Especially during fast charging and high power discharging. A large amount of heat, if not cooled down, will render electrically powered equipment unable to function properly. Therefore a device is needed to reduce the temperature of the battery during operation. Such equipment is generally called battery chiller, also referred to as BCS or BTMS.
眾所周知, oil is a non-renewable resource, it will become less and less in the future. 同時, the earth’s environment is getting worse and worse, and the greenhouse effect is becoming more and more obvious. 所以, the development of pure electric vehicles, pure electric aircraft, pure electric ships and other pure electric drive equipment is the only way for future development.
Compared with the various equipment driven by the engine, the equipment driven by pure electricity will have stricter temperature requirements. This is because the optimal temperature of the battery is between 20-45 度. If the battery temperature exceeds this range, it will accelerate the life of the battery and equipment, accelerate corrosion damage, ETC。, and even cause the equipment to burn. If the battery falls below this temperature, it will result in reduced battery performance, which will eventually result in underpowered devices or reduced mileage. The development of pure electric drive equipment must solve this problem.
TKT 有 10 years of experience in R&D and design of BTMS, and more than 200,000 devices are in operation around the world. They are certified for real results. We provide professional customization services and can do custom development for other types of equipment. Including size, 冷卻能力, voltage and current, fan direction, ETC。, welcome to leave a message for detailed communication.

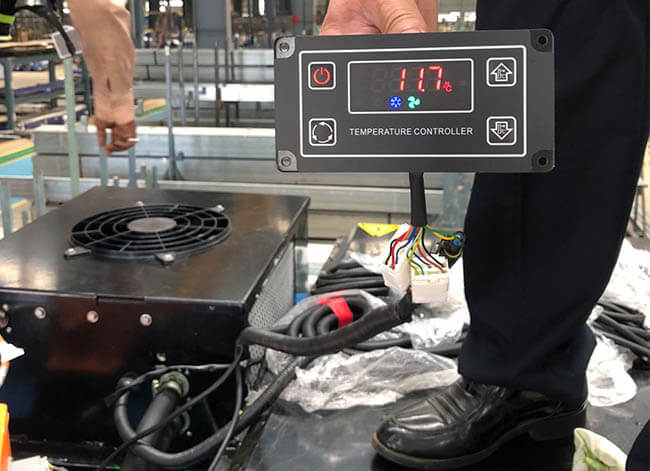

冷凝盤管, 冷凝器風扇, 水箱, 水泵浦, 熱交換器, 電動壓縮機, 控制面板, CAN模組, 膨脹閥, ETC.
The condenser system cools down the coolant and the water pump will run the coolant through the BCS and the battery structure system to release the heat generated by the battery pack.
Payment Terms
For small order:
1)100% T/T in advance is acceptable
2)receive payment from Alibaba Trade assurance system
For big value order:
50% T/T deposit, 50% balance before shipping
Warranty Policy
1) 18 Months Free Warranty Time;
2) Free Spare Parts Delivered in Advance;
3) Local Free Service during Warranty Period;
Specific products and accessories may be longer, 詳細諮詢請留言.
The most effective solution to improve driving range without increasing the number of batteries is a custom battery thermal management system.
電動車電池熱管理案例 – 為財富量身定制 500. TKT’s BTMS has 10 多年設計經驗.
