Explore Battery Thermal Management System

China battery thermal management system manufacturer. Suitable for all heavy-duty electric equipment, with a voltage range of DC 220~450V / 400~750V / 500~900V. Cooling capacity range 3-10kW.

1. Control: Plug and Play; CAN Control

2. Kiểm soát nhiệt độ: ±0.5℃ Precise

3. hàng đầu thế giới 500 BYD / Nhà cung cấp TATA

4. 10 Years of Experience in R&D and Design

Request A Quote Send E-Mail Whatsapp

Tổng quan + Battery Thermal Management System Structure + What are the different types of BTMS? + What is the function of the BTMS?

Hệ thống quản lý nhiệt pin

Electric Driven A/C

Engine Driven A/C

Bộ sạc xe điện

25 Years of Outstanding Quality

Get Quotes Now

TKT battery thermal management system offers a variety of solutions suitable for heavy-duty electric equipment. Cooling capacities range from 3kW to 10kW, with installation options including top-mounted and side-mounted. Recently, we developed a new air conditioning-integrated battery thermal management system (BTMS) providing a unified solution for electric buses. TKT also supports OEM customization services, meeting the needs of 99% of our diverse customers.

TKT BTMS has passed CE certification and real vehicle testing by Fortune 500 công ty.

Battery Thermal Management System OEM Case:

Trong quá khứ 10 năm, TKT HVAC has developed rapidly and has become the top 3 battery thermal management system manufacturers in China. Với kinh nghiệm OEM phong phú, chúng tôi đã hợp tác với nhiều nhà sản xuất xe nổi tiếng thế giới. Chẳng hạn như BYD, TATA motos, Chuyển đổi tính di động, Daewoo, vân vân. The cooperative projects include a variety of electric bus battery thermal management system, light truck battery thermal management system, heavy truck battery thermal management system, vân vân.

“EV Battery Thermal Management Case Study – A Customized Story for Fortune 500” Bấm vào để đọc (highly recommended)

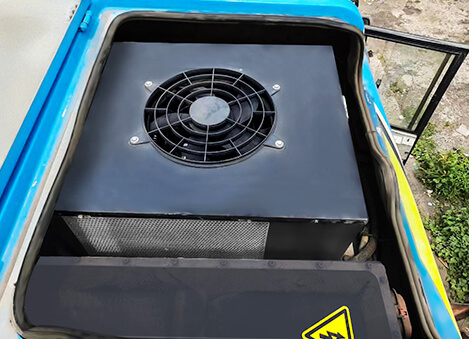

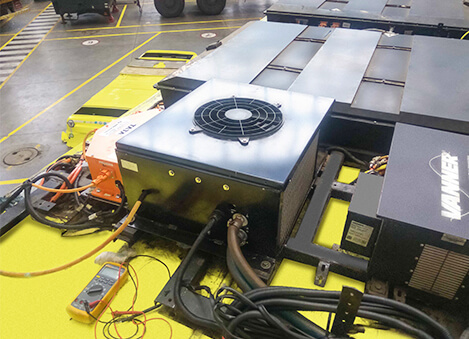

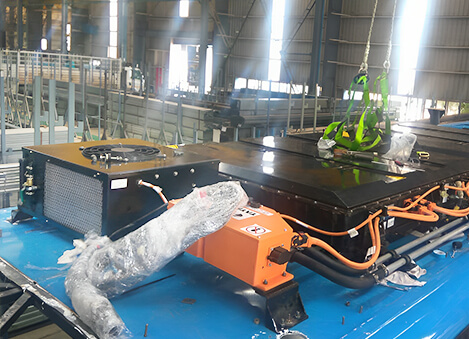

Real vehicle test, stable operation (Click vào hình ảnh để phóng to)

What are the advantages of BTMS?

▲More than 10 years of market proof with quality and performance widely recognized worldwide.
▲Bigger Coolant flow to maintain battery temperature in shortest temperature;
▲CAN Điều khiển để tránh thao tác sai làm hỏng bộ pin (Runs automatically to keep battery temperature stable);
▲ Áp dụng các bộ phận điện IP67, chẳng hạn như máy nén điện, máy bơm nước, kết nối vv;
▲Fast OEM/Customized Design (1 month);
▲ Kiểm soát nhiệt độ chính xác (0.5 Bạn.C);

Hệ thống quản lý nhiệt pin

Battery Thermal Management System Specification Sheet

Welcome to contact us for professional model advice. Ngoài ra, TKT provides OEM customization services, and vehicle manufacturers are welcome to consult.

Support tùy chỉnh Services
Dung tích	làm mát: 8-10kW sưởi ấm: 1-24kW (Không bắt buộc)	làm mát: 5-6kW sưởi ấm: 1-24kW (Không bắt buộc)
Ứng dụng	Battery DC 400~750V / 500~900V	Battery DC 220~450V / 400~750V / 500~900V
Kích thước (LWH)	10CW: 780430380mm	5R: 750550293mm

Support tùy chỉnh Services
Dung tích	làm mát: 3-4kW sưởi ấm: 1-24kW (Không bắt buộc)	làm mát: 5-6kW sưởi ấm: 1-24kW (Không bắt buộc)
Ứng dụng	Battery DC 220~450V / 400~750V	Battery DC 220~450V / 400~750V / 500~900V
Kích thước (LWH)	3R: 587355242mm	5CW: 620350414.5mm

Support tùy chỉnh Services
Dung tích	làm mát: 6kW sưởi ấm: 1-24kW (Không bắt buộc)	BTMS Cooling: 8kW Bus A/C Cooling: 143K BTU
Ứng dụng	Battery DC 400~750V / 500~900V	For Electric Bus DC 400~750V / 500~900V
Kích thước (LWH)	19401066292mm	Integrated: A/C & BTMS – 32001830250 mm

Battery Thermal Management System Overview

The optimal operating temperature of the EV battery is 20° to 45°. Nếu vượt quá nhiệt độ này, phạm vi lái xe và tuổi thọ của pin sẽ giảm đáng kể. Còn gì nữa, còn có thể ảnh hưởng đến các thiết bị xung quanh và gây ra hậu quả cháy nổ. Nếu pin ở dưới nhiệt độ này, Hoạt động phản ứng điện hóa của nó sẽ trở nên kém và hiệu suất của pin sẽ giảm đi rất nhiều.

Battery thermal management system is a system specially designed to cool down power batteries. It is an indispensable component of commercial electric vehicles. TKT battery cooling system adopts liquid cooling and PTC for heating, which can steadily take away a large amount of heat generated by the battery. This is the most commonly used battery cooling method for electric buses, xe tải điện, thiết bị điện nặng, và thuyền điện.

Hệ thống quản lý nhiệt pin

Click to learn more about the principle

How to choose a battery thermal management system (BTMS) ?

1. Battery type and specifications: Different battery application scenarios have different requirements for battery thermal management system. Ví dụ, if it is a power battery and applied to an electric bus, its battery voltage is usually between 280v-750v. When an electric bus is running, the battery produces a lot of heat, which requires a battery liquid cooling system.

2. EV Reserve space: When different vehicle manufacturers design new vehicles, the design space of each part is planned. Ví dụ, because electric trucks have boxes, we usually recommend designing the truck battery thermal management system (BTMS) on the outside of the truck and adopting a side-mounted installation solution. The advantage of this is that it is conducive to the release of heat dissipation performance and the battery cooling efficiency is high. Tất nhiên rồi, we also have other truck battery cooling solutions that can solve 95% of truck battery cooling needs. For another example, the overall space of electric heavy machinery is small, so there are strict requirements on the size of the battery thermal management system. We have split battery cooling solutions and also provide customized services, so we can perfectly solve the needs of battery thermal management system of different sizes.

3. Quality and reliability: The battery thermal management system (BTMS) is very important for electric vehicles. It can not only ensure vehicle safety but also reduce vehicle operating costs. A high-quality cooling system can greatly improve battery life and vehicle range, thereby reducing battery replacement costs and vehicle charging costs. Therefore it is very important to choose a good battery thermal management system. TKT BTMS products have been supplied to Fortune 500 công ty, passed their strict inspections, and have been in actual vehicle operation for more than 5 năm. Only practice can tell whether a product is good or not. Five years of stable operation is the best proof. TKT has rich experience in cooperation with OEM vehicle manufacturers, chẳng hạn như BYD project, TATA motors project, Switch mobility project, vân vân.

What are the different names for battery thermal management systems in different countries?

The most common way to express this is through the EV Battery Thermal Management System, abbreviated as BTMS. From this, we get BTMS system, quản lý nhiệt pin, and EV battery thermal management. Besides these, there are other common names, such as battery cooling system, làm mát pin, and battery liquid cooling, also abbreviated as BCS. There are also more formal terms like battery chiller and EV battery chiller. There are also verb expressions, such as cooling battery.

+ Battery Thermal Management System Structure

Kết cấu:

cuộn dây ngưng tụ, quạt ngưng tụ, bể nước, máy bơm nước, trao đổi nhiệt, máy nén điện, bảng điều khiển, mô-đun CÓ THỂ, van giãn nở, vân vân.
The condenser system cools down the coolant and the water pump will run the coolant through the BTMS and the battery structure system to release the heat generated by the battery pack.

+ What are the different types of BTMS?

Battery thermal management system is mainly divided into battery air cooling, làm mát bằng chất lỏng pin, phase change material cooling, and battery immersion cooling. Different cooling methods need to be selected based on scenario judgment. For commercial electric vehicles, because the battery capacity of electric vehicles is relatively large, they are all high-voltage power batteries, so they release a lot of heat. Now the most cost-effective and stable program is battery liquid cooling.

+ What is the function of the BTMS?

The function of the battery thermal management system is to adjust the temperature of the battery in real time and maintain the battery operating within the optimal temperature range to ensure battery performance, life and safety. Mainly speaking, it is divided into the following situations.
1. Prevent overheating: When the battery temperature is too high, the battery performance will be affected and may even malfunction. The battery thermal management system can reduce the battery temperature in time through heat dissipation and other methods to prevent the battery from overheating.
2. Prevent overcooling: Trong môi trường nhiệt độ thấp, battery performance will also be affected and may even fail to work properly. The battery thermal management system can promptly increase the battery temperature through heating and other methods to prevent the battery from overcooling.
3. Maintain battery temperature stability: During vehicle driving, the battery temperature will continue to change. If the temperature fluctuation is too large, it will have a negative impact on battery performance. The battery thermal management system can keep the battery temperature stable by controlling coolant flow and other methods.
4. Improve battery life: By controlling the battery temperature within the optimal range, the battery life can be extended. Reduce the number of replacements and reduce maintenance costs.
